Some clustering history: Originally Illumina adaptors were quite different for single or paired-end and smallRNA applications. When clustering Illumina flowcells we used the “cluster station” and each lane was hybridised with a single sequencing primer in a strip-tube with floppy manifolds all over the place. In my lab we have always run a very wide range of sequencing; ChIP-, miRNA-, RNA-, Genome-, Etc-seq; and because of this most of the time we were having to carefully load different sequencing primers into the strip-tubes and make sure neither these, and/or the flowcell, were inverted on the cluster station. Any mistakes in the primer-hyb meant the sequencing first-base would fail requiring a primer-re-hyb.

Improving clustering in the ‘Core Genomics’ lab: Our idea to resolve this was a simple one, just add a mix of all primers to the strip-tube and only the correct primer will bind (Figure 1).

Figure 1 a: Libraries and their correct primers (lanes 1-6) produce sequence reads, where the wrong primer is used or the libraries are in  the wrong tubes no sequence data will be generated. b: Using a mix of primers allows any library type, or even mixed libraries, to be sequenced.

This modification to Illumina sequencing simplified our cluster generation protocols and reduced the likelihood of manual errors resulting in poor quality, or no sequencing results. Simply mixing standard and smallRNA sequencing primers removed the need for Illumina’s more complex ‘multi-primer hyb’ protocol. And as a by-product this modification allowed sample multiplexing, achieved by mixing two different library types in a flowcell lane and sequencing both libraries with their respective sequencing primers, using alignment to split the samples.

Our results showed no differences between mixed or normal/multi primer hyb and made primer-hyb quicker, easier and less error prone. We successfully mixed the ChIP-seq and smallRNA libraries described above in a single flow cell lane at 10:1 ratio (only a few reads are needed for smallRNA). The increase in sample throughput was achieved at a slight reduction in total sequence yield per sample, but for many applications a single lane now provides sufficient data.
Make sure your flowcell is the right way round: A final modification we’d asked for all that time ago was flow cell that cannot be inverted, the simple addition of a notch to one corner would make it impossible to put the flow cell on an instrument in the wrong orientation. Illumina delivered (sort of) and the current HiSeq 2000 flowcells do have the notch; unfortunately the older instruments don’t have the corresponding shape to prevent incorrect orientation.

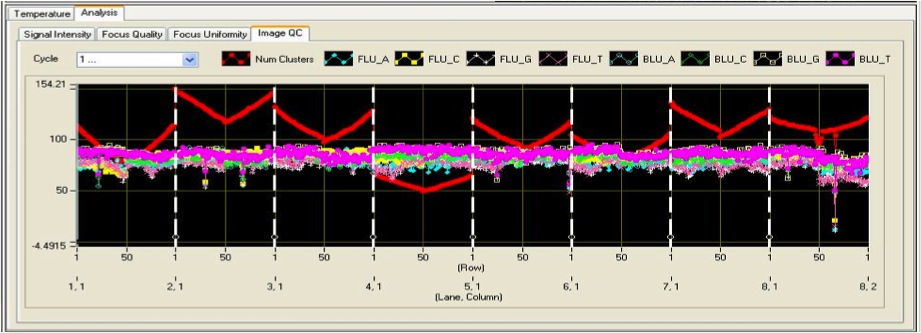

Checking orientation with the data: We used to get a visual clue to orientation with the first generation of Illumina’s live run reports. An inversion of the flow cell could be seen by looking at the cluster density visualisation. The “smile†seen is due to the drop in DNA concentration as the clustering solution moves through the lane from botto to top, resulting in lower cluster density at the ‘out’ end of the flowcell.

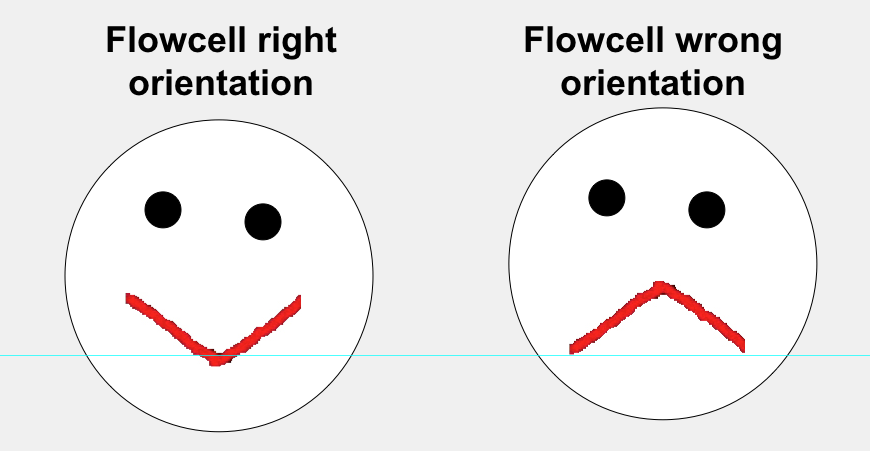

We interpreted the images from the Illumina output as a smile for a good flowcell or a frown for a bad one!


PS: Yes; the wrong orientation frown was one of ours! Everyone makes mistakes.
PPS: To avoid orientation issues we always run PhiX as a 1% spike on lanes 1-7 and 5% on lane 8.
